Example: Combo Box
Product: CODESYS Visualization
This example shows how to use combo boxes together with arrays and text lists.
 |
Description

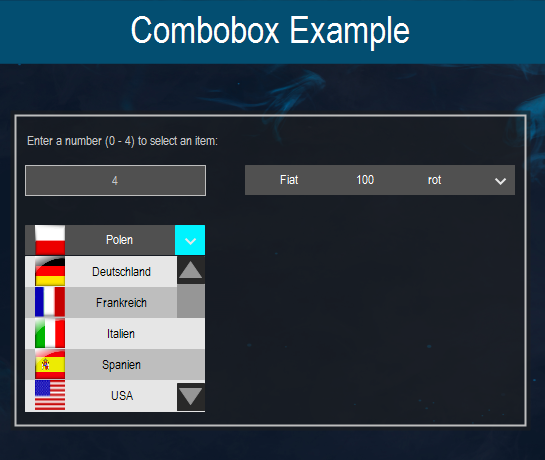

The first combo box is filled by a two-dimensional array. The selection (0–4) is determined by the text field.
The second combo box displays an image together with text. This is done by referring to a text list and an image pool.
System requirements and restrictions
Programming system | CODESYS Development System (version 3.5.14.0 or higher) |
Runtime system | CODESYS Control Win (version 3.5.14.0) |
Add-on components | - |
Note
DOWNLOAD Project
